Product Description

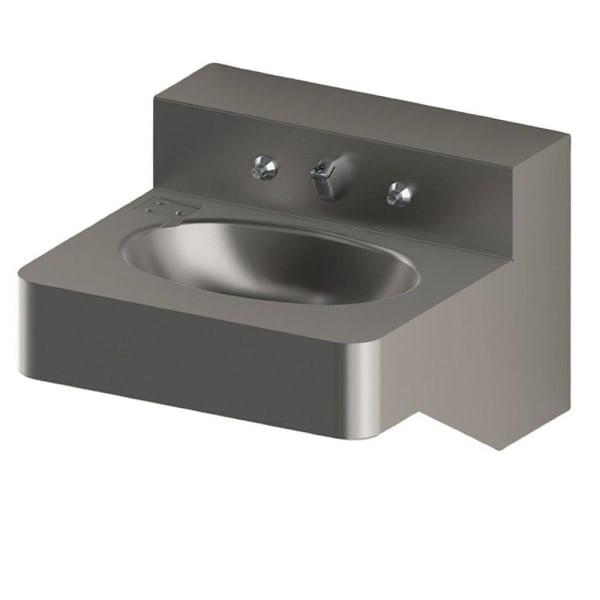

Acorn Engineering Company 18" ADA Security Lavatory Rear Mount Oval Bowl SSFixture is designed to be installed on finished wall and serviced from an accessible pipe chase.
Cabinet is fabricated from 14 gage, type 304 stainless steel and is seamless welded construction with a satin finish.
Cabinet interior is sound deadened with fire-resistant material.
There are no accessible voids or crevices where contraband can be concealed.
Lavatory oval bowl is 14-3/4 x 9-1/2 x 5 deep and includes an integral fast drain.
Standard elbow waste outlet is 1-1/2 O.D. plain end and extends 11" minimum beyond the rear of the fixture.
Valve is a pneumatically operated, pushbutton Air-Control valve using atmospheric air.
Pushbutton is vandal-resistant and requires less than 5 pounds to activate valve.
Valve is direct-acting, metering valve timing is adjustable from 5 to 60 seconds.
Valve includes a 0.5 GPM flow control and can be remotely located up to 10 feet from the operating pushbutton.
Valve and Bubbler conform with lead free requirements of NSF61, Section 9 and CHSC 116875.
MFG# 1652-1-BP-04-M
Ships from manufacturer. Please note that additional delivery time and freight charges may apply. Returns are not accepted.
Product Videos
Custom Field
UNSPSC Code 30181504
MFG Part 1652-1-BP-04-M
Note Ships from manufacturer. Please note that additional delivery time and freight charges may apply. Returns are not accepted.
