Product Description
NGP Fire Door, Bottom Gap Solution, Dark Bronze, Up To 90 Min, 48"UL Certified Solution for Fire Doors With Excessive Clearance Between the Bottom of the Door and Finished Floor, up to 1-3/8"
Application Certified on Both Hollow Metal and Wood Fire-Rated Doors up to 90 Minutes
Non-Handed
L-Bracket Allows Installation while Door Remains on Hinges
Can be Trimmed in the Field up to 1-1/2" per Side, 3" Total
Designed to Travel Over Uneven Floors, with a Range of 3/8"
Visibility of Hardware is Minimized by Using L-Bracket on Pull-Side of the Door
May be Fastened to the Underside of the Door's Bottom Rail to Minimize Visibility
End Caps Set Height Position and Provide a Finished Look

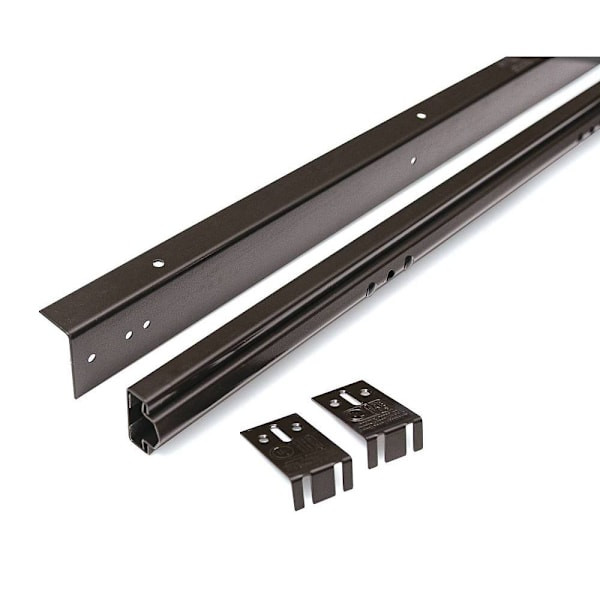

Product consists of: L-Bracket, 16-Gauge Steel, Embossed with UL Mark, Door Bottom Assembly, 18-Gauge Steel, End Caps, 18-Gauge Steel, Embossed with UL Mark
Hardware Pack: #10 Ч 1-1/2" PHPH SS SMS (DKB), #8-32 Ч 1-3/4" PHPH SS Thru-Bolt (DKB), #6 Ч 3/8" SS TEK, #10 Ч 2" PHPH SS SMS, #6 Ч 3/4" FHPH SS SMS (DKB)
Certified for use in US and Canada
Patented: US Patent US 11,761,262 B2
Finish: Powder Coated: Matte Black
MFG# 9595DKB-48
Ships from manufacturer. Please note that additional delivery time and freight charges may apply. Returns are not accepted.
Product Videos
Custom Field
Note Ships from manufacturer. Please note that additional delivery time and freight charges may apply. Returns are not accepted.
MFG Part 9595DKB-48
UNSPSC Code 31411900
