Product Description

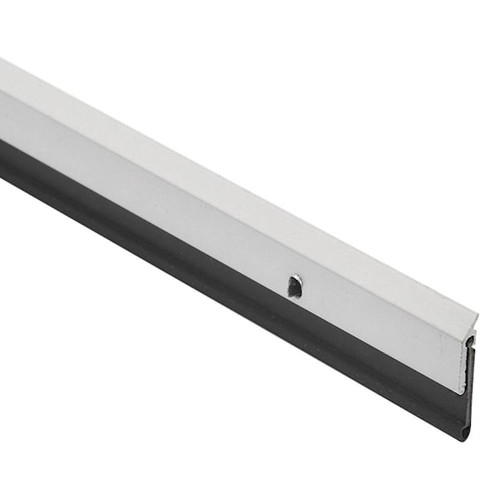

NGP Door Astragal With EPDM Seal, Anodized 84"Aluminum Alloy 6063, T5 temper
Synthetic EPDM Rubber in Polypropylene Thermoplastic Matrix
Very Good Abrasion Resistance, Tensile Strength and Memory
Flame-resistant
Temperature Range -81°F to 275°F
Good Resistance to Ozone, Sunlight and Aging
BHMA Certified to ANSI/BHMA A156.22 Performance Tests for Heat, Cold, Air Infiltration and Smoke Infiltration
Fire-Rated Astragal Seals Cannot Replace any Astragal Required on the Door by the Door Manufacturer to Maintain its Fire Label
IBC, NFPA 80, NFPA105, and NFPA 252 Require the Gap at the Meeting Edge Between Fire Labeled Doors Must Not Exceed 1/8"
#6 x 3/4" Stainless Steel Sheet Metal Screws Furnished
Screw Holes are Slotted for Adjustment
Provided as Two-Piece Set
Neoprene is Black
Anodized Aluminum
MFG# 115NAx84
Ships from manufacturer. Please note that additional delivery time and freight charges may apply. Returns are not accepted.
Product Videos
Custom Field
Note Ships from manufacturer. Please note that additional delivery time and freight charges may apply. Returns are not accepted.
MFG Part 115NAx84
UNSPSC Code 31411900
