Product Description

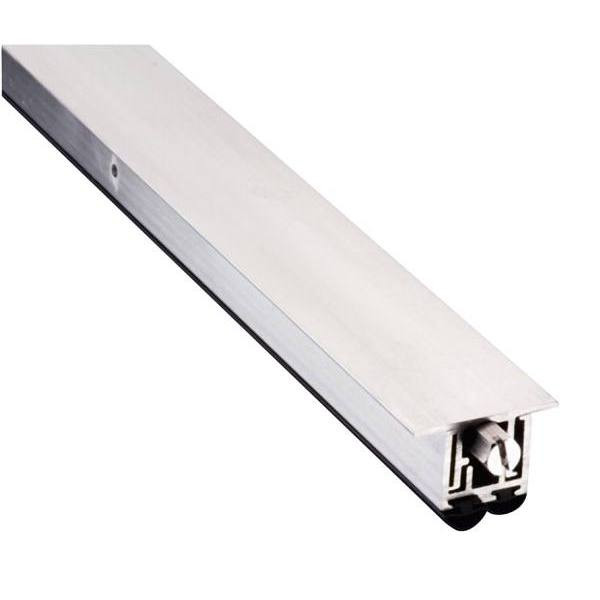

PEMKO Hollow Metal Automatic Door Bottom Prene Seal 36.5in Max DropThe 420 Series Full Mortise Automatic Door Bottom Is Specifically Designed For Hollow Metal Doors With A 13/16" Inverted Channel. It Features A Heavy-Duty Mechanism For Smooth Operation And Is Fitted With Two Fire-Rated Rubber Seals.
Door Bottom Prevents Drafts, Dust, Moisture, Smoke, Fire, And Sound From Entering The Gap Under The Door. It Can Be Easily Cut In The Field For Additional Adjustment. The Aluminum Casing Is Fully Mortised, Maintaining The Appearance Of The Door Alleviating The Need For End Plates.
Aluminum Casing Is Fully Mortised, Maintaining The Appearance Of The Door Alleviating The Need For End Plates.
Smoother Action Positive Seal Mechanism: Aluminum Case Encloses A Movable Drop-Bar Seal Actuated By A Jamb-Contacting Plunger During Door Closure, Providing An Effective Seal
Maximum Drop Seal Is 1/2" Recommended Gap Is 3/8"
Can Be Trimmed Down By As Much As 2" In The Field (Stock Lengths Only). If Non-Stock Sizes Are Ordered, Order Must Note Need To Trim 2 Inches From The Size Ordered
MFG# 086686
Ships from manufacturer. Please note that additional delivery time and freight charges may apply. Returns are not accepted.
Product Videos
Custom Field
Note Ships from manufacturer. Please note that additional delivery time and freight charges may apply. Returns are not accepted.
MFG Part 86686
UNSPSC Code 46171500
