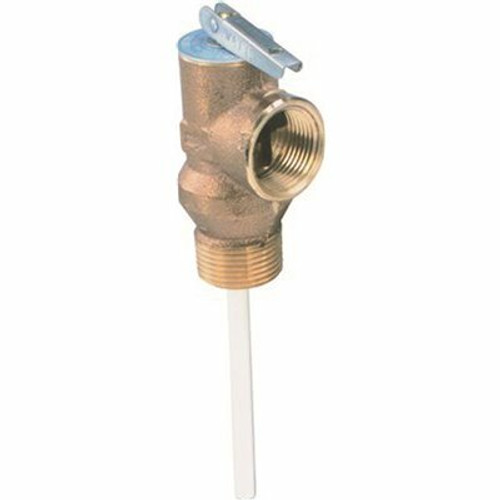

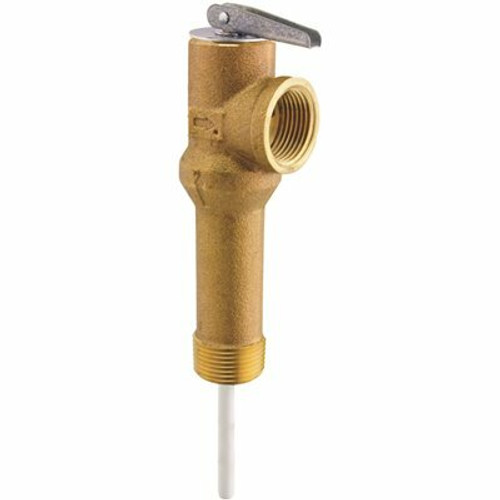

Watts 100Xl Series 3/4 In. Brass Temperature And Pressure Relief Valve With 4 In. Shank

Product Description

This 3/4 in. temperature and pressure relief valve is used to provide automatic temperature and pressure protection to hot water supply tanks and hot water heaters up to 105,000 BTU/hr. It features a bronze body with NPT male inlet and NPT female outlet connections, unique thermostat with special thermo-bonded coating, and a test lever. This valve is ASME rated and CSA listed. Temperature relief is 210F (99C), Pressure relief range is 75 to 150psi (5.2 to 10.3 bar). Standard pressure settings are 75, 100, 125, or 150psi (5.27, 7.03, 8.79, or 10.55 bar).Required safety prodice on all water heatersPrevents water heater from blowing upBrass body constructionTemperature relief is 210F (99C)Pressure relief range is 75 to 150 psiASME rated, CSA listedFeatures unique thermostat with special thermo-bonded coatingUsed to provide automatic temperature and pressure protection to hot water supply tanks and hot water heaters up to 105,000 BTU/hrANSI Z21.22 certifiedIncludes test lever and stainless steel spring
