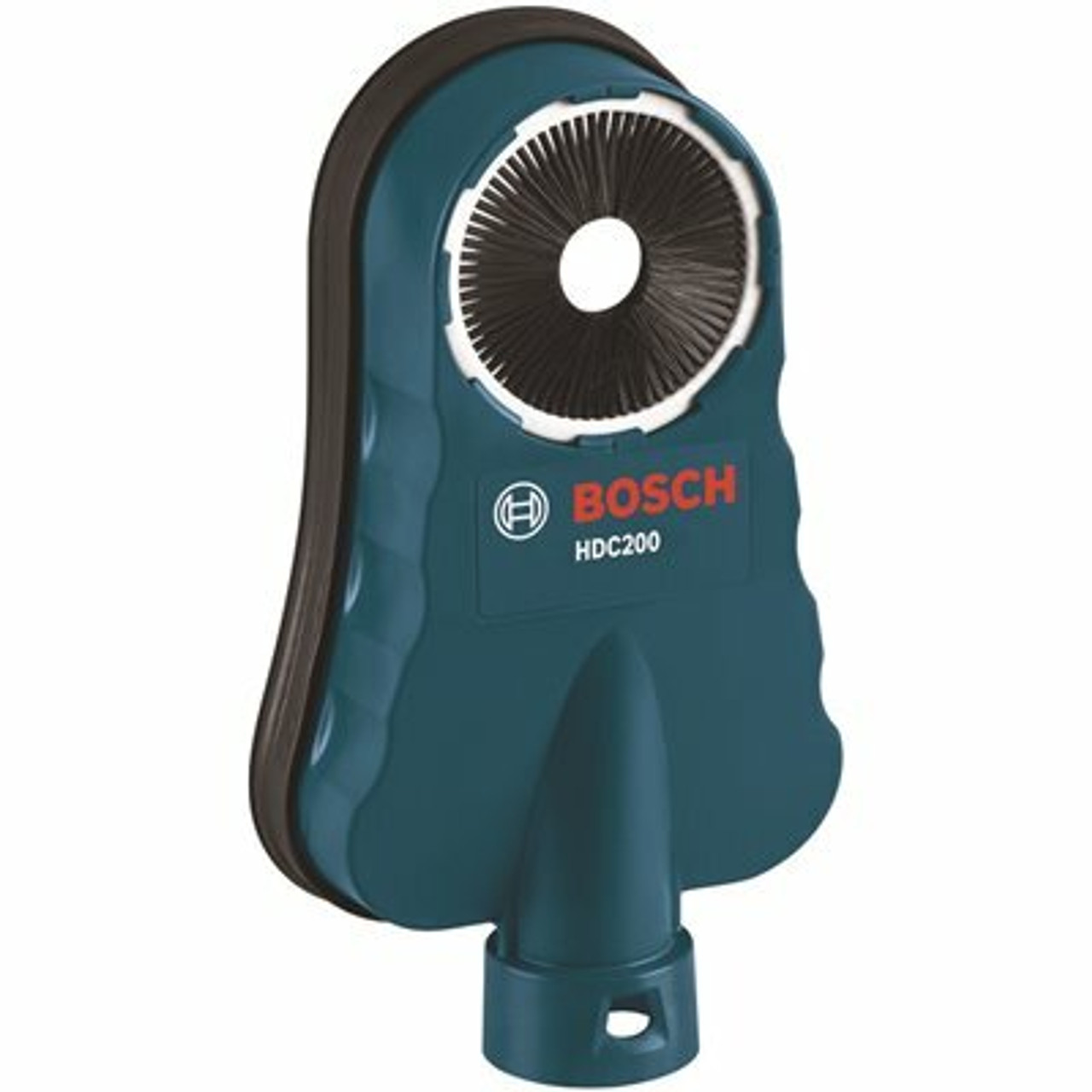

Bosch Sds-Max And Sds-Plus Universal Dust Collection Attachment For Concrete/Masonry Rotary Hammers

Product Description

The HDC200 is a flexible dust collection attachment for SDS-Max and SDS-Plus Universal hammers for drilling into concrete. It is optimized for drilling diameters from 5/8 in. to 1-3/8 in. but can accommodate up to 2-1/2 in. if the brush ring is removed. The attachment features 2 unique air chambers: 1 allows the drilling bit to pass through when drilling into the work surface. The second air chamber is designed to maintain suction to the wall during the drilling application. The dust port is designed for Bosch 1-3/8 in. vacuum nozzle but can be used with either 1-1/4 in. or 2 in. vacuum nozzles when used with the appropriate adaptor. The system is universal and is designed to connect to a vacuum so that it can be used with any size hammer and can accommodate the full range of drill bit diameters and drilling depth.

- Dual air chambers provide for both dust collection during use and provide suction to the wall

- Dust port fits Bosch 1-3/8 in. vacuum nozzle and can convert to 1-1/4 in./2 in. hose nozzles

- Replaceable brush ring provides seal for multiple bit diameters

- Rubber seal maintains suction to wall

- Dust port is designed for Bosch 1-3/8 In. vacuum nozzle but can be used with either 1-1/4 In. or 2 In. vacuum nozzles when used with the appropriate adapter

- System is universal and is designed to connect to a vacuum so that it can be used with any size hammer and can accommodate the full range of drill bit diameters and drilling depth
