Product Description

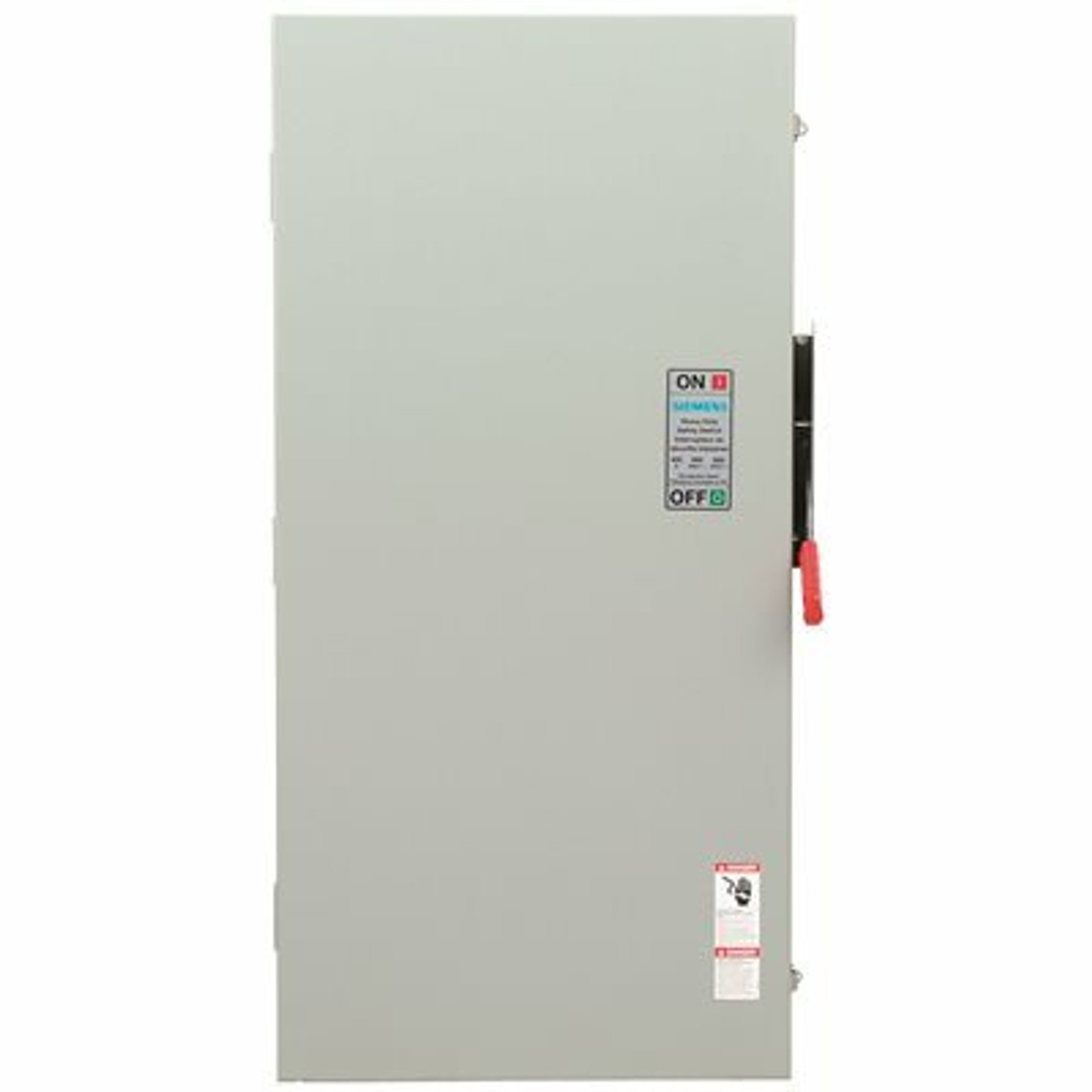

Heavy Duty Safety Switches are available in 30-1200A ratings and in Type 1, 3R, 12 and 4X enclosures. Both fusible and non-fusible versions are offered. They can be used on circuits that are rated through 200K when protected by or used with Class R or J fuses. They feature quick make and break operation and visible blade construction.- 3-Pole, 600-Volt, 600 Amp fusible safety switch
- Quick-make, quick-break operating mechanism that ensures positive operation
- Visible blade, double-break switching action
- Arc chutes dissipate heat and prolong switch life
- Highly visible red handle grip is designed for hook stick operation
- Defeatable dual cover interlock
- Center punch provided for field drilling to allow on padlocking
- Generous top, bottom and side gutters that meet or exceed NEC wire-bending space requirements
- Tangential knockouts for easy conduit lineup
- Side-hinged door that opens past 180 degree for easier wiring
- Unique enclosure design increases rigidity and prevents cuts and scrapes to conductors and installers hands
- Spring reinforced fuse clips that assure reliable contact for cool operation
- Door latch securely holds door closed and allows cover padlocking
- Front removable mechanical lugs that are suitable for CU/Al 60 degree or 75 degreeC conductors
- Lugs are field convertible to copper body and to a wide variety of compression connectors
- Hinged clear line terminal shield with probe holes for inspecting or testing line side terminals
- Drawn cover for increased rigidity and resistance to abuse
- NEMA type 1: enclosure is intended for indoor use primarily to provide protection against contact with the enclosed equipment in locations where unusual service conditions do not exist
