Md31D Series White Infrared Request To Exit Motion Sensor

Product Description

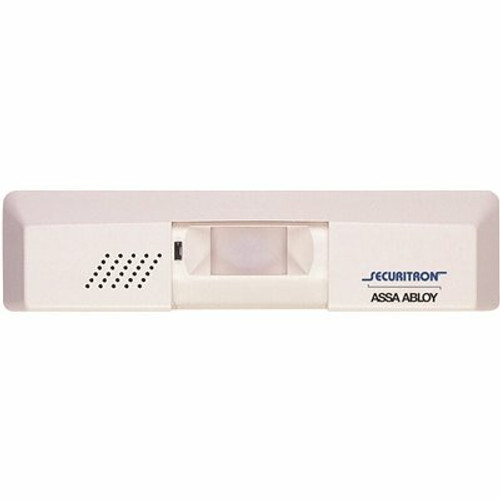

The SDC MD31D passive infrared detector is specifically designed for request-to-exit applications. It has an adjustable 1 - 60-second time delay. The coverage field is internally point able. When angled 14 down, coverage may be 5 ft. x 6 ft. at 7 ft. H to 10 ft. x 12 ft. at 15 ft. H. The MD31D projects a wrap around U pattern down and away from the door to inhibit tampering. The MD31D may be mounted to the frame header, wall or ceiling. Complies with NFPA applications. Passive infrared request to exit motion sensor For use in request to exit applications 7 ft. to 15 ft. mounting height 6 ft. to 12 ft. coverage range 7 in. x 2 in. x 2 in. unit dimension 12-Volt/24-Volt AC/DC voltage 26mA at 12-Volt or 24-Volt DC/AC current 2 SPDT, dry contacts 1 Amp at 30-Volt DC contact rating contact rating 14F to 122F operating temperature UL 294 listed 5-year warranty
