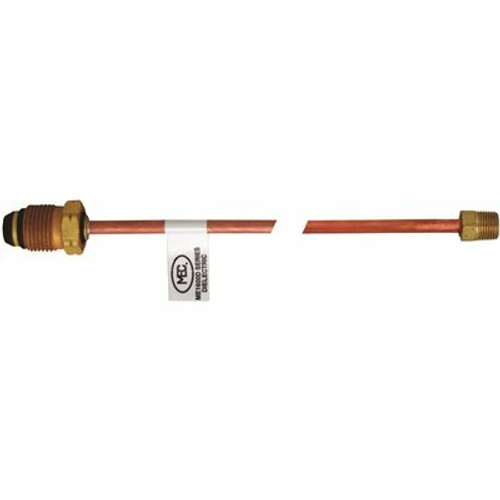

Mec Pol X 1/4 In. Mnpt, Long Nipple, 1/4 In. Tubing Size, 20 In. L Me1600D Series Dielectric Pigtail

Product Description

ME1600D Series Dielectric pigtails/ hog tails are intended to isolate metallic piping from sources of electrical current and to help prevent galvanic corrosion when used on underground containers. The ME1600D dielectric pigtail/ hogtail would typically be installed at the ASME tank directly upstream of the first stage regulator prior to underground piping, isolating the underground metallic piping from electric current. Long Nipple and 20 in. overall length.Male hard nose POL, 7/8 in. nut1/4 in. tube O.D.Pull test rating of 500 and 750 lbs. respectivelyUL Listed and tested in accordance with UL 569
